Microsoft 365 Guide

This guide details how to integrate SWIRL with an existing Microsoft 365 (M365) tenant. It is intended for use by M365 Administrators with authority to add a new App Registration in their Azure Portal and optionally grant permissions for various APIs as noted below on behalf of users who wish to use SWIRL to query their personal M365 content.

Register a New App in Azure Portal

To connect a SWIRL installation to an M365 tenant, a new App must be registered and configured in the Azure Portal.

After the new App is configured, you can use it to authenticate users with OIDC and allow them to search their personal M365 content using OAUTH2 permissions consent.

Before You Begin

You will need the following information about your SWIRL deployment:

  • swirl-host
  • swirl-port (if it is something other than the default)

In the examples below, the swirl-host is the fully qualified domain of search.swirl.today in which 'search' is the actual host.

In order to use OIDC and OAUTH2, your deployment must be using https, the only exception being where localhost is used as the host (one can use http:// in this case). It is important to keep in mind that the URLs for Single Page Applications and Web Protocols do not permit Fully Qualified Domains without https://.

Getting Started

  • Login to the Azure Portal with an administrator account. https://portal.azure.com/

  • In the search box at the top of the Azure Portal homepage, search for: app registrations and click the App registrations result under "Services":

Azure find app registration

Create the New App

  • To create a new App, select the New registration option at the top of the "App registrations" page:

Azure New Registration

  • On the "Register an application" page:
    • In the Name section, enter a name for the App (e.g.,SWIRL App)
    • Under "Supported account types", select the following option: Accounts in this organizational directory only (MSFT only - Single tenant)
    • Add "Redirect URI" for a Web application:
      • Platform: Web
      • Value: https://<swirl-host>[:<swirl-port>]/swirl/microsoft-callback
    • Click on Register to create the application: Azure App Registration
  • The "Overview" page for the newly created App should look similar to this: Azure App Details
  • Add "Redirect URIs" for a Single Page application:
    • First navigate to the Authentication page of the app registration configuration Click on Authentication
    • Add a "Single Page Application Protocol" Single Page Application Protocol
    • Add the OIDC Call back URL Add OIDC Callback URL
    • Add the Microsoft OAUTH2 Call back URL Add OAUTH Callback URL 1 Add OAUTH Callback URL 2
    • Return to the Overview page Return to Overview 1

Add App API Permissions

Assign the Necessary Permissions

  • In the left column, select the "API permissions" option, then click on Add a permission: Azure Add Permissions 1

  • In the "Request API permissions" section that opens (on the right):

    • Select the "Microsoft APIs" tab (at the top)
    • Click the Microsoft Graph button (at the top)
    • Click the Delegated permissions button (on the left)

Azure Add Permissions 2

  • In the resulting search box, enter and select each of the following permissions, then click the Add permissions button at the bottom of the page:

Azure Add Permissions 4

  • Repeat this process for each of these individual permissions:
    • Calendars.read
    • ChannelMessage.Read.All
    • Directory.Read.All
    • email
    • Chat.Read
    • Files.Read.All
    • profile
    • Mail.Read
    • offline_access
    • Sites.Read.All
    • User.read
  • After adding all the above permissions to the App, click the Grant admin consent for MSFT button under "Configured permissions":

Azure Add Permissions 3

Select Yes when prompted to approve this action:

Azure Add Permissions 5

  • The "Configured permissions" section for the App should now look like this:

Azure Add Permissions 6

Generate a Client Secret

  • In the left column, select the "Certificates & secrets" option, then click on New client secret:

Azure Client Secret 1

  • In the "Add a client secret" section that opens (on the right):
    • Enter a Description for the new secret
    • Select an Expires time range for the secret

Azure Client Secret 2

  • Click the Add button (at the bottom) and the "Certificates & secrets" page will now show a new Client secret entry for the App:

Azure Client Secret 3

Once the secret is created, copy the value shown on the screen right away! It will be obscured from this point forward when returning to this menu.

Configure OIDC and OAUTH2 in the SWIRL Client and Server

In the configuration examples in the following sections you can find the <application-id>, <tenant-id>, <secrete-value>, <server-authentication-callback-url>, <client-authentication-callback-url>, <client-authorization-callback-url> in the App registration that created in the previous section, below are screenshots indicating the location of each:

  • Application and Tenant IDs Azure App and Tenant Ids

  • Client secret value Azure Secret Value

  • Callback Urls Azure Secret Value

Edit the SWIRL .env file (or .env.docker if running in Docker) as shown in the example below.

The .env file is created after running install.sh for local installations, and it is always present in Docker.

MICROSOFT_CLIENT_ID='' # deprecated
MICROSOFT_CLIENT_SECRET='' # deprecated
MICROSOFT_REDIRECT_URI='' # deprecated
OIDC_RP_CLIENT_ID='<application-id>'
OIDC_RP_CLIENT_SECRET='<secrete-value>'
OIDC_OP_AUTHORIZATION_ENDPOINT='https://login.microsoftonline.com/<tenant-id>'
OIDC_OP_TOKEN_ENDPOINT='https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token'
OIDC_OP_USER_ENDPOINT='https://graph.microsoft.com/oidc/userinfo'
OIDC_RP_SIGN_ALGO='RS256'
OIDC_OP_JWKS_ENDPOINT='https://login.microsoftonline.com/<tenant-id>/discovery/v2.0/keys'
LOGIN_REDIRECT_URL='/swirl'
LOGOUT_REDIRECT_URL='/swirl'
OIDC_USERNAME_ALGO='swirl.backends.generate_username'
OIDC_STORE_ACCESS_TOKEN='True'
OIDC_STORE_ID_TOKEN='True'
OIDC_AUTHENTICATION_CALLBACK_URL='<server-authentication-callback-url>'

Edit the client configuration file named static/api/config/default created when you ran the install-ui.sh script. Navigate to the sections shown below and edit them as indicated:

  "msalConfig": {
    "auth": {
      "clientId": "<application-id>",
      "authority": "https://login.microsoftonline.com/<tenant-id>",
      "redirectUri": "<client-authorization-callback-url>"
    }
  },
  "oauthConfig": {
    "issuer": "https://login.microsoftonline.com/<tenant-id>/v2.0",
    "redirectUri": "<client-authentication-callback-url>",
    "clientId": "<application-id>",
    "scope": "openid email",
    "responseType": "code",
    "requireHttps": false,
    "oidc": true,
    "strictDiscoveryDocumentValidation": false,
    "tokenEndpoint": "https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token",
    "userinfoEndpoint": "https://graph.microsoft.com/v1.0/me",
    "skipIssuerCheck": true
  }

After adding these variables to .env or .env.docker, restart SWIRL:

python swirl.py restart

Activate the Microsoft 365 SearchProviders

The SWIRL distribution includes pre-configured SearchProviders for Outlook Email, Calendar Events, OneDrive Files, SharePoint Sites, and Teams Chat.

The local Teams app must already be open when clicking a Teams Chat result link in order for Teams to take you to the correct chat.

For results containing recurring Microsoft 365 Calendar events or nested Outlook Message threads, only the most recent events and messages are shown.

In version 3.0.0, the OneDrive SearchProvider was updated to omit folders as results; it now only returns documents.

  • Open the admin console: http://localhost:8000/swirl/

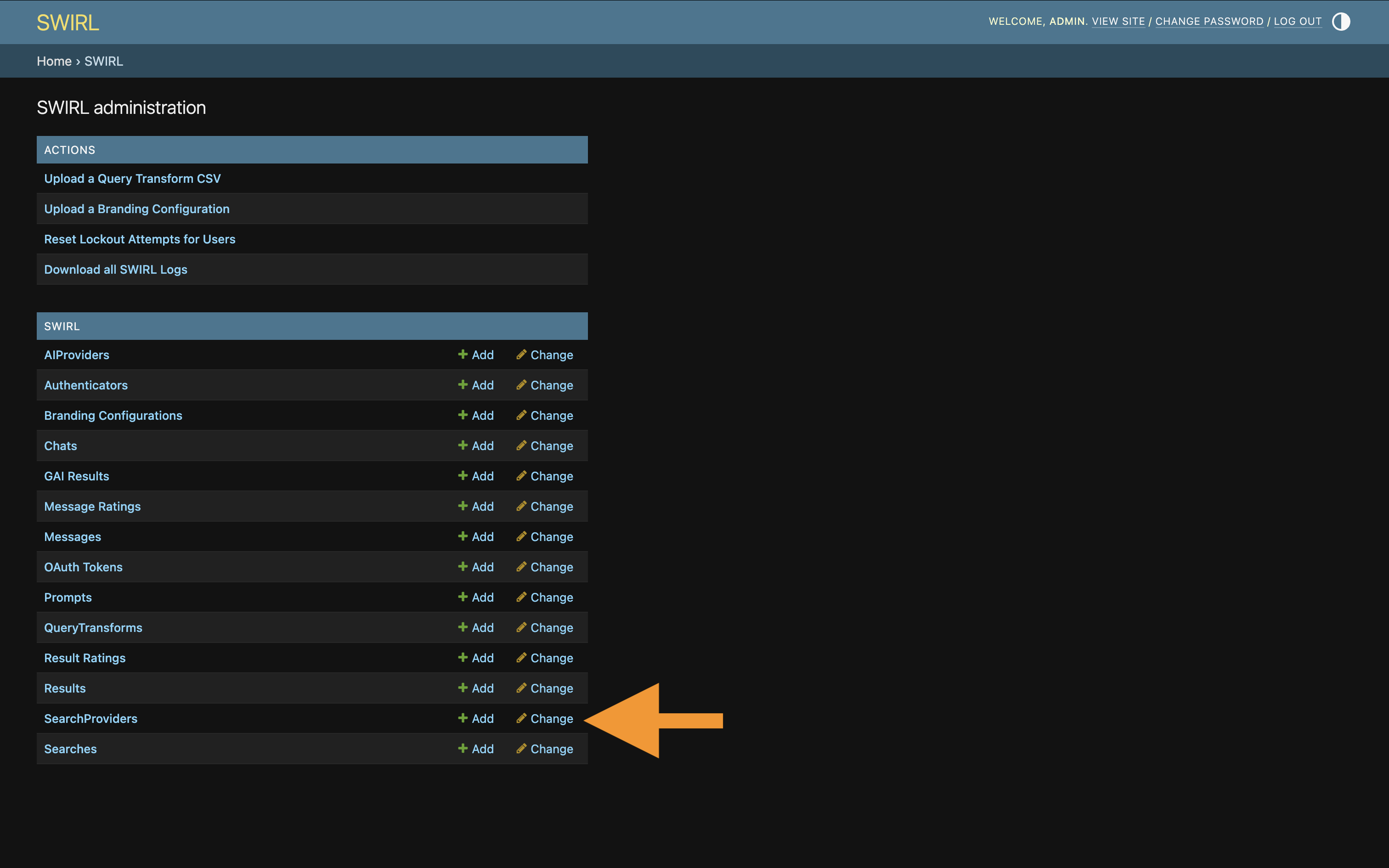

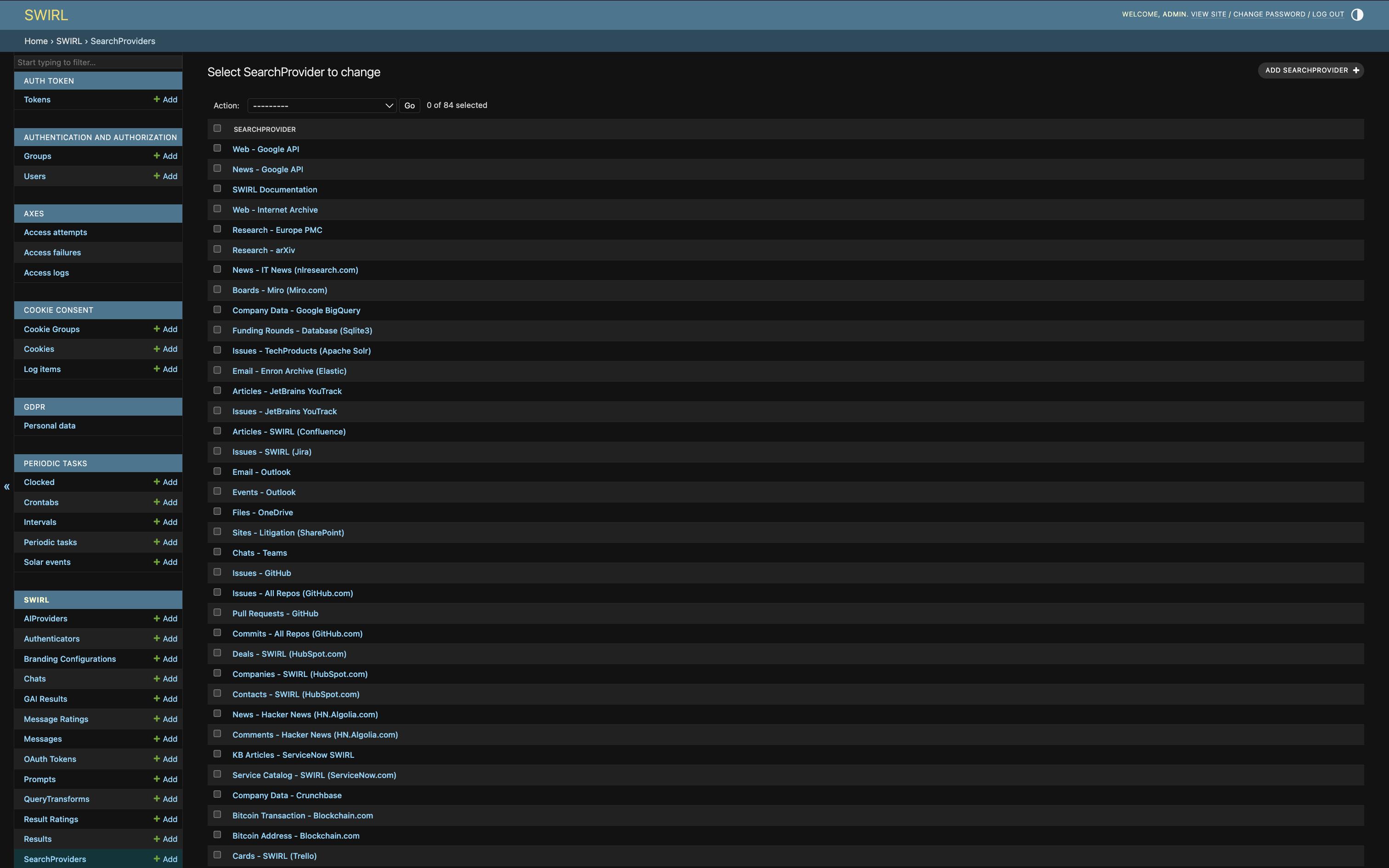

  • Click SearchProviders to access the JSON endpoint listing all SearchProviders.

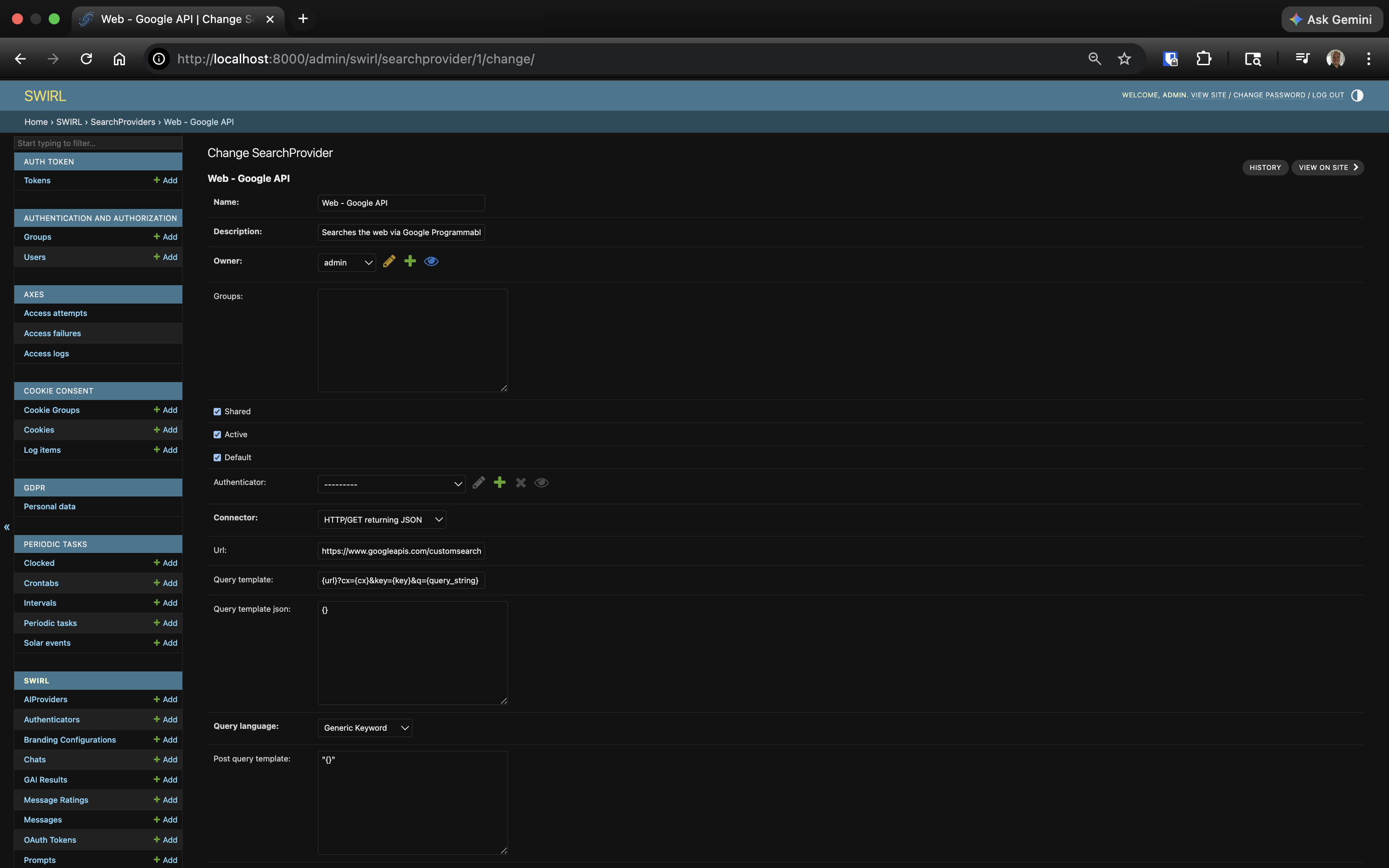

  • Find each Microsoft 365 SearchProvider that you wish to activate. There are separate providers for each of the M365 Office apps. Edit the SearchProvider by adding the id of the provider you wish to edit to the URL. For example, to edit the provider with an id of 16, go to: http://localhost:8000/swirl/searchproviders/16/

SWIRL SearchProvider

  • Select the Raw data tab on the form at the bottom of the page. Then edit the form, changing the active property from false to true:
{
  "id": 16,
  "name": "Outlook Messages - Microsoft 365",
  ...
  "active": false,
  ...
}

To:

{
  "id": 16,
  "name": "Outlook Messages - Microsoft 365",
  ...
  "active": true,
  ...
}

Authenticate to Microsoft

As of SWIRL 3.2.0, when signing in to SWIRL via Microsoft OIDC, users are now automatically authorized to any active M365 SearchProviders.

To verify that the SWIRL-M365 integration is working, open the Galaxy UI: http://localhost:8000 (or http://localhost:8000/galaxy/)

Click on the profile icon at the top right and then click the Microsoft toggle to activate it. Depending on how the above configuration was done, M365 may require authentication and/or granting of access. After that, the toggle next to the Microsoft logo will light up, indicating a successful connection.

SWIRL Search box Auth

Now, enter a search in the UI: metasearch

Assuming any document in your M365 contains the word metasearch, results should appear in just a few seconds:

SWIRL Results Auth

If the toggle does not light up after authenticating with Microsoft, please contact support. The related documentation below may also be useful.
